- Industry: Power Plant
Introduction:
Power plants face increasing pressure to reduce wastewater discharge while maintaining efficient operation. In high-salinity environments, conventional treatment methods often fall short due to scaling, membrane fouling, or high chemical demand.
In 2020, a thermal power plant implemented a 760 m³/h ultrafiltration (UF) system using PolyCera® Hydro100 membranes to treat a challenging mix of circulating wastewater and RO concentrate. The objective was to achieve nearly zero liquid discharge (ZLD) while ensuring consistent pretreatment for downstream reverse osmosis (RO) processes.

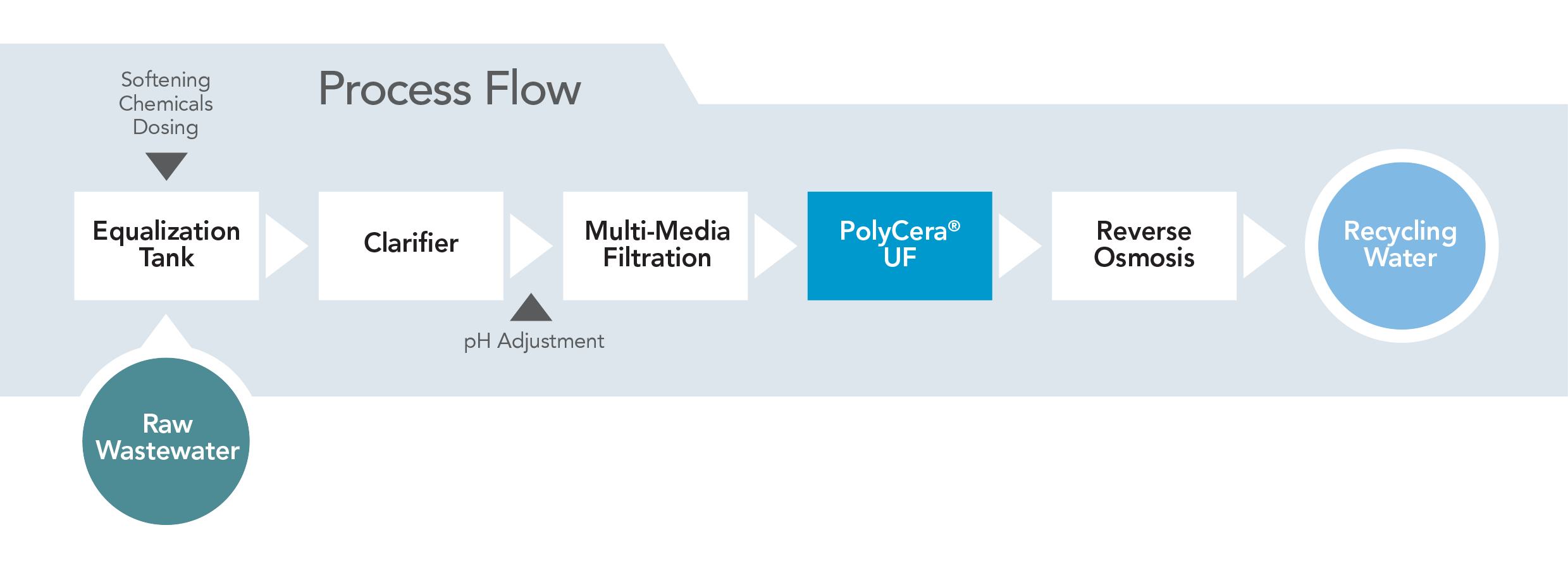

Process Design:
The system was engineered to handle high salt concentrations and variable water quality with minimal chemical use. The treatment process includes:
- Wastewater Source: Combination of circulating cooling water and reverse osmosis concentrate, both containing elevated levels of TDS and suspended solids.
- PolyCera® Hydro100 UF Membrane Filtration:
- Removes suspended solids and reduces turbidity to protect RO membranes.
- Maintains stable operation at high flux under challenging feedwater conditions.
- Downstream Reverse Osmosis (RO): Receives consistently pretreated water with reduced fouling potential, ensuring reliable performance and extended membrane life.
- Concentrate Management: Final brine is managed through a concentration and reuse loop, minimizing liquid discharge from the plant.
Results:
The PolyCera® Hydro UF system achieved the following operational outcomes:
- High Recovery Rate: Overall system recovery exceeded 90%, significantly reducing liquid discharge volumes.
- Stable Water Production: Continuous 760 m³/h operation at design flux confirmed the membrane’s performance reliability.
- Enhanced RO Protection: Pretreated water enabled stable RO operation with reduced cleaning frequency.
- ZLD Compliance: The membrane system played a critical role in enabling the plant to meet its nearly zero discharge target.
Conclusion:
The deployment of PolyCera® Hydro 100 UF membranes in this power plant project underscores their suitability for high-salinity wastewater applications. The system enabled efficient water reuse, high recovery, and operational stability, helping the plant achieve its environmental and regulatory goals with reduced resource demand.
PolyCera®’s membrane performance in this project positions it as a reliable pretreatment solution for power plants pursuing zero liquid discharge in waterstressed regions.
